K Modular Building K4129
Home/ Products/ Modular Buildings/ K Modular Building/ K4129
< >
(0) Contact Us

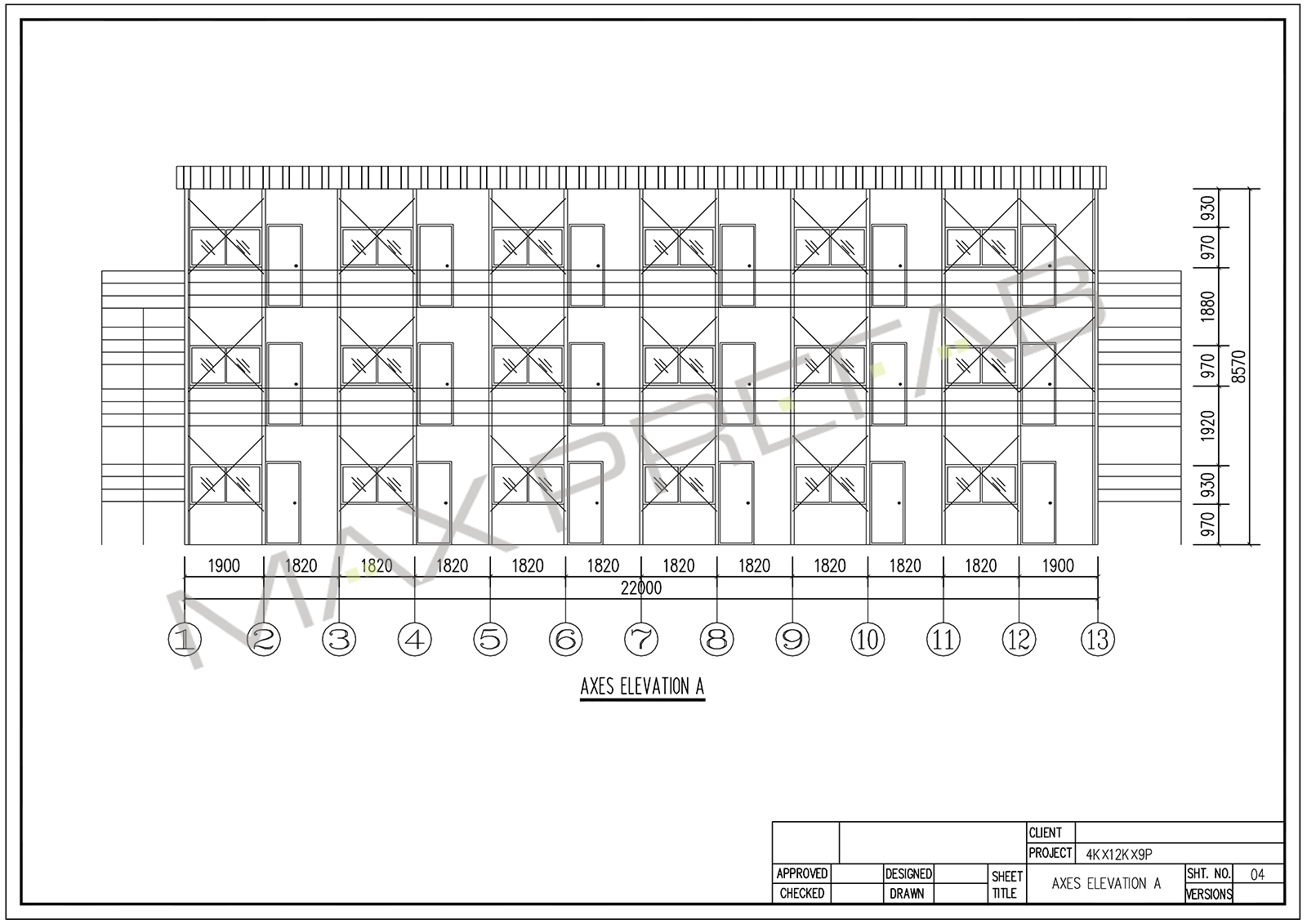

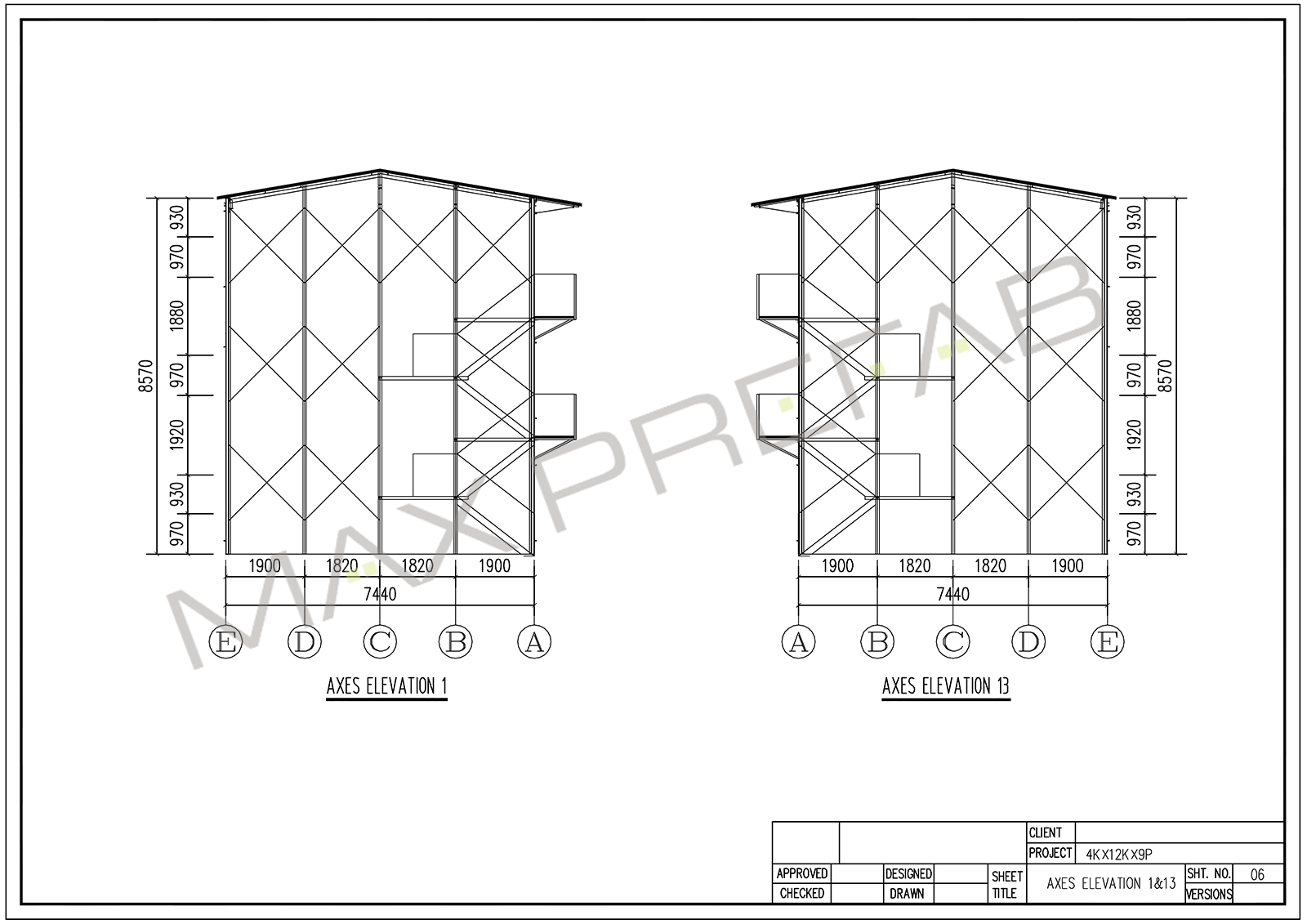

Views Floor Plans Trade Assurance Related Product



Quick Details

Category NO. Component Name Material Spec.(mm) Material Thickness Remarks
Material

1 Ring beam 8#C type steel:80*35*15*1.6 1.6mm Painting steel structure black
2 Upright column Double 8#C type steel:80*35*15*1.6 1.6mm Painting steel structure white color
3 Patand 8#C type steel:80*35*15*1.6 1.6mm Painting steel structure black including wall bottom waterproof channel
4 Roof truss “A”shape":Double 8#C type steel+50×30square pipe 1.6mm+1.0mm Painting steel structure white
5 Roof purlin L40x3.0mm angle steel 3.0mm Painting steel structure white
6 Roof tile 1040 type corrugated EPS sandwich panel tile 50mm(0.326mm double steel sheet thickness) 12kg/M3 EPS density Grey-white
7 Window PVC sliding  window 1740×925mm with 4mm clear glass Sliding
8 Exterior wall panel 50mm 950 type EPS sandwich panel 50mm(0.326mm double steel sheet thickness) 12kg/M3 EPS density Grey-white
9 Door 850×2050mm EPS sandwich panel door with balltype lock 50mm(0.326mm double steel sheet thickness) 12kg/M3 EPS density With iron door frame(white)
10 Accessories Screw, silica gel, glass sealant:carton package ppgi covers are included Touch up painting included
11 Rust prevention 3 layers of painting: red lead primer+2 layers of alcohol acid paint Great welding, grinding and polishing are included


K Modular Building General Structure





K Modular Building General Installation And Final Products




K Modular Building Interior


K Modular Building Materials

Quality Control Is Our Commitment




Additional accessories can fully comply with below Standards:
